The Unreasonable Effectiveness of Structured Cooperation

Now that we’ve talked at length about what you get when you apply the rule of structured cooperation—and I hope I’ve convinced you that it’s quite a bit—and also how to implemented it, I want to finally talk about why it works. What makes that rule so special, and why is it so unreasonably effective?

As it turns out, these questions actually have an answer, and structured cooperation didn’t just fall out of the sky. In fact, as we explore the answers and take a journey through some of the most fascinating parts of programming language history, you will find that it is actually just the newest incarnation of a principle, an idea, we’ve been applying for over half a century, and that has fundamentally affected each and every piece of code written during that time.

Standing on the shoulders of giants #

I have to confess that I’m actually a little embarrassed to put structured cooperation and Scoop out with my name next to it, because essentially all I’ve done is plagiarize the work of two giants—Nathaniel J. Smith and Roman Elizarov, along with the rest of the Kotlin team.

While Nathan emphasizes he’s not the author of structured concurrency, his phenomenal article, Notes on structured concurrency, or: Go statement considered harmful, introduced me to the idea, and his explanation is what allowed me to recognize that the way we currently design distributed systems suffers from fundamentally the same type of problem that structured concurrency was invented to solve. I really can’t oversell his article—it’s been years since I first read it, I’ve read it many times since, and I will never shut up about it. I’ve mentioned it in my talks, as did Roman Elizarov in his, and I think it should be considered required reading for every single developer. I think it’s one of the best programming articles out there, period, because apart from doing an incredible job of explaining a non-trivial subject, between the lines, it reveals something very fundamental about the essence of programming. If you haven’t read it yet, I thoroughly recommend you do so, along with his article on timeouts and cancellations, which I copied pretty much verbatim in Scoop.

Roman needs no introduction to anyone even vaguely aware of Kotlin, of which he was the lead designer for years, publishing many insightful articles along the way. When you start learning about how Scoop is implemented, you’ll discover that it is little more than a crude implementation of distributed coroutines on top of Postgres. I wouldn’t have recognized that that was the proper way to what model I was trying to achieve if I hadn’t previously interacted with Kotlin’s coroutine implementation. I can say unequivocally that Scoop would not exist in its current form were it not for the work of Roman and his team—not merely because I had an existing implementation that I could reference when I needed to, but most importantly because interacting with coroutines in Kotlin, along with their ecosystem, gave me perspective, and framing Scoop in that way allowed me to anticipate features and capabilities I should be implementing. Scoop is much more cohesive as a consequence.

There has never been a more fitting time to say: If I have seen further, it is by standing on the shoulders of Giants.

GOTO statement considered harmful #

Ask any programmer what they think of GOTO, and I’m willing to bet that the overwhelming majority answer with "GOTO is bad and should not be used". Now ask them why, and I’m willing to bet that an overwhelming majority can’t really give a satisfactory answer. The term ‘spaghetti code’ will probably be uttered in a Pavlovian reflex we’ve all been conditioned to have, but even asking about that will probably quickly lead to an argumentum ad populum – it’s true because that’s what everyone says.

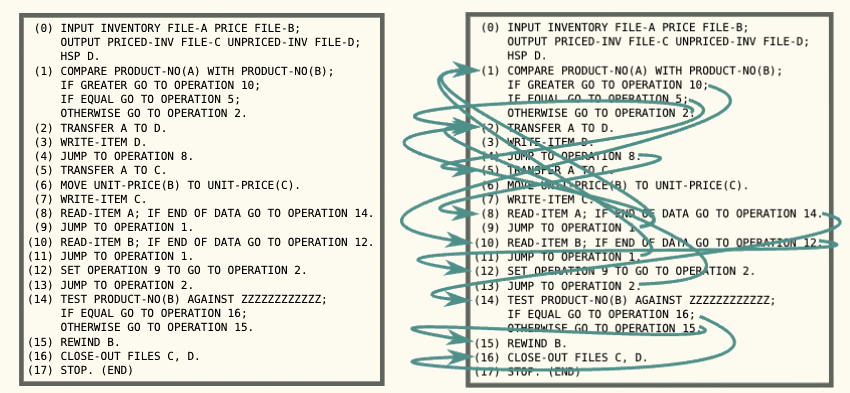

Here’s the thing, though—you don’t actually need GOTO in your language to be able to write spaghetti code. For example, Nathan gives the following spectacular example of some incantations written in FLOW-MATIC, a language that has GOTO:

Here’s essentially the same code, jumping around in exactly the same way, rewritten in JavaScript (or so Claude assures me), a language that has no GOTO:

function flomaticProcessor() {
    let operation = 0;
    while (true) {
        switch (operation) {
            case 0:
                if (inventoryIndex < inventoryFile.length) currentInventoryItem = inventoryFile[inventoryIndex];
                if (priceIndex < priceFile.length) currentPriceItem = priceFile[priceIndex];
            case 1:
                if (!currentInventoryItem) { operation = 14; break; }
                if (!currentPriceItem) { operation = 12; break; }
                if (currentInventoryItem.productNo > currentPriceItem.productNo) operation = 10;
                else if (currentInventoryItem.productNo === currentPriceItem.productNo) operation = 5;
                else operation = 2;
                break;
            case 2: unpricedInvFile.push({ ...currentInventoryItem }); operation = 8; break;
            case 5: pricedInvFile.push({ ...currentInventoryItem, unitPrice: currentPriceItem.unitPrice });
            case 8:
                inventoryIndex++;
                if (inventoryIndex >= inventoryFile.length) {
                    currentInventoryItem = null;
                    operation = 14;
                    break;
                }
                currentInventoryItem = inventoryFile[inventoryIndex];
                operation = operation9Target;
                break;
            case 10:
                priceIndex++;
                if (priceIndex >= priceFile.length) {
                    currentPriceItem = null;
                    operation = 12;
                    break;
                }
                currentPriceItem = priceFile[priceIndex];
                operation = 1;
                break;
            case 12: operation9Target = 2; operation = 2; break;
            case 14:
                if (!currentPriceItem) { operation = 16; break; }
                if (currentPriceItem.productNo === "ZZZZZZZZZZZZ") operation = 16;
                else operation = 15;
                break;
            case 15: priceIndex = 0; currentPriceItem = priceFile[priceIndex];
            case 16: return "PROGRAM_END";
            default: return "ERROR";
        }
    }
}

flomaticProcessor();

It’s clear that the WTF’s/min for this function have no upper bound, but nobody’s in any hurry to ban switch statements and while loops—it’s clear that spaghettification susceptibility isn’t in itself a sufficient reason to remove a language feature. So why did we ban GOTO, and why do we all think delicious pasta is the reason?

In what manner doth the Spaghetti Monster squiggle? #

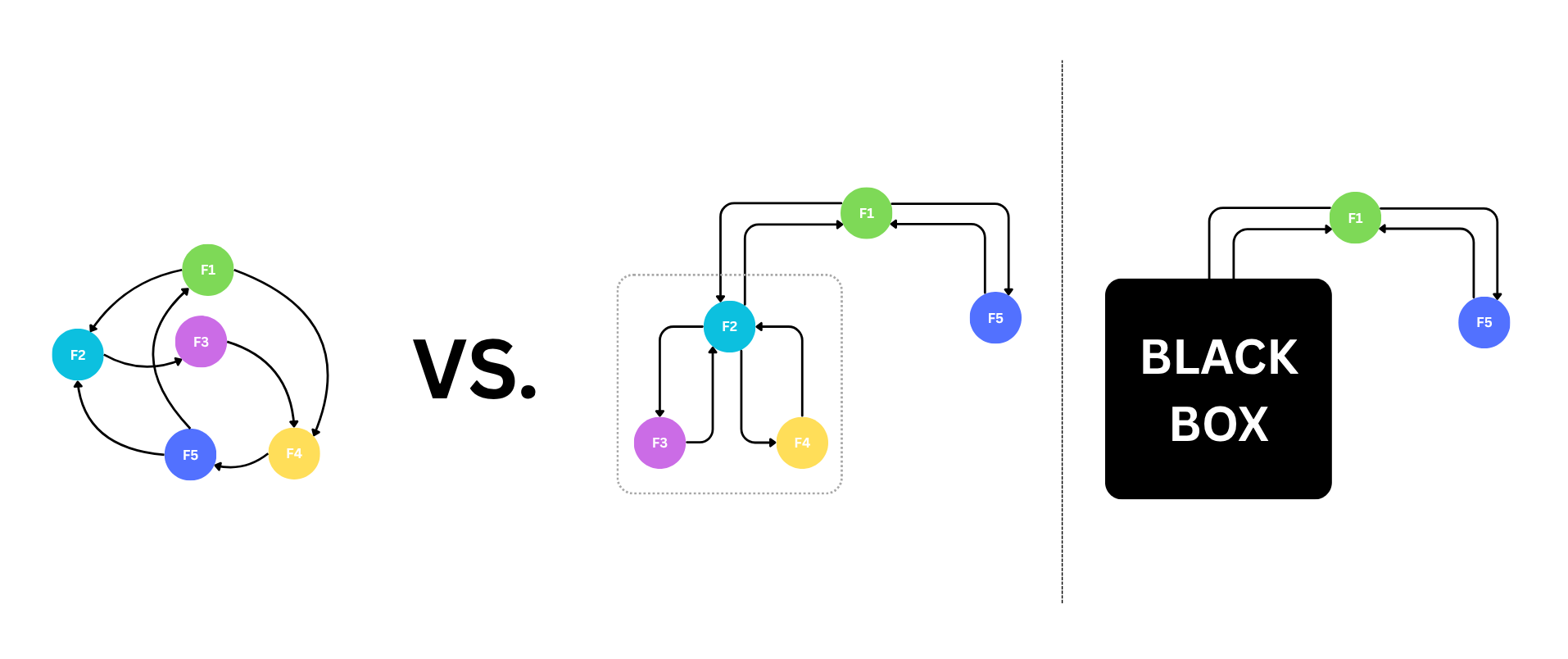

We all intuitively understand that the code above is abysmal, but it might not be immediately clear how to formulate what is wrong with it. The code is clearly very difficult to make sense of, but why?

Fundamentally, it’s because we can’t organize the path of execution into a hierarchy—the path the code takes forms a graph, not a tree. Without this property, in order to determine what path a program will take, we need to be aware of the contents of each “node” (intuitively representing a function call, but in general can be any “block of statements”) in the diagram above. Any one of them could at any point send the execution flow someplace else, and the only way to find out is to open each and every one and see what it does. As a consequence, we’re deprived of one of the key faculties needed to grasp complex code—the ability to think in terms of black boxes.

If you spend some time thinking about it, you will realize that in order to be able to form this kind of execution flow hierarchy, the code must be structured in such a way so that it follows what Nathan calls the “black box rule”: whenever the flow of execution goes into something, it must be guaranteed to always, at some point, come back out. That “something” could be anything representing a group of statements—a function, an if statement, a for loop, whatever you like.

Here’s the key thing: even though the JavaScript example above breaks that rule, it only breaks it locally. By that, I mean I can take that whole mess, throw it in a function, close my eyes and forget what I just saw, and that function will behave just like any other function would—execution flow will go in, it’ll do its thing, and then it’ll come out. There is no way for the function (or almost any other modern construct for that matter¹) to wrestle control away from the caller and not give it back. Whatever mess the block of code decides to inflict on itself, it must always eventually yield control back to its caller.

But the old-school GOTO, in its full, unfettered glory, allows any piece of code to jump to any other piece of code anywhere in the program. By doing that, it allows anyone to take over the execution flow and not give it back, and there’s fundamentally no way to control or restrict that power. The only way to guarantee that it is not (mis-)used is by reading every single instruction that comprises the entire execution path, and verifying that either GOTO isn’t used, or it’s used in a way that doesn’t break the black box rule. Having to open, parse, and understand each and every function that is called, and the functions they call, the functions they call, and so on, is fundamentally what breaks our ability to compartmentalize, which, in turn, breaks our ability to reason about code of any real complexity. If messy execution flow was cancer (which it is), GOTO is what allows it to metastasize.

So spaghettification is not, in fact, the reason why GOTO was banned, but rather its ability to potentially make the spaghetti strand squiggle across the entire codebase. Even with GOTO gone, you can still make spaghetti, but each strand can only squiggle within the confines of some delimited code block (typically a function), and must eventually always come out again.

This fundamental problem with GOTO was described by none other than E. W. Dijkstra (pronounced Dyke-strah—now you finally know), when, in 1968, he published Go To Statement Considered Harmful. It’s only a page and a half; I suggest you read it. There, he argues that GOTO “should be abolished from all ‘higher-level’ programming languages”, triggering an industry-wide tantrum. As Nathan writes:

From here in 2018, this seems obvious enough. But have you seen how programmers react when you try to take away their toys because they’re not smart enough to use them safely? Yeah, some things never change. In 1969, this proposal was incredibly controversial. Donald Knuth defended goto. People who had become experts on writing code with goto quite reasonably resented having to basically learn how to program again in order to express their ideas using the newer, more constraining constructs. And of course it required building a whole new set of languages.

But, as we now know, cooler heads prevailed, and history reduced GOTO to the butt of jokes.

One door closes, many others open #

Enforcing a hierarchy on execution flow by removing GOTO, and requiring that all constructs obey the black box rule, bore fruit beyond “just” the fact that it made code much easier to reason about. It also allowed us to make the position in this hierarchy explicit, which is pretty much what we know today as a call stack. That, in turn, allowed us to build exceptions, complete with stack unwinding and stack traces. Can you even imagine maintaining a codebase without having a stack trace at your disposal when something breaks? If not, try writing some reactive code, see how long it takes for you to cry². And crucially, this would have been very difficult, if at all possible, to do if GOTO were still around.

Another feature enabled by killing off GOTO are the various flavors of resource handling constructs, e.g. try-with-resources. How would that even work if you could just jump into the middle of a try block from wherever?³ What about garbage collection? Various compiler optimizations? None of those would be possible in the way we’re used to if we kept GOTO alive. Removing GOTO led directly to the advent of many of the features we now take for granted, features that wouldn’t be possible otherwise.

This should come as no surprise—restricting the set of permissible programs allows you to rely on patterns that become enforced by those restrictions, and you can take advantage of those patterns to build new features. That’s also fundamentally why the capabilities of IDE’s for statically typed languages are (and always will be) better and more reliable than those for dynamic ones.

In programming, as in other things, less is often more.

Visualizing control flow #

Nathan introduces an excellent visual notation that I will be switching to for the remainder of this post, and one that clearly shows how and why GOTO is different from other language constructs. The notation represents the “shape” of execution flow, but frankly it’s so intuitive that using words to describe it only makes it less so.

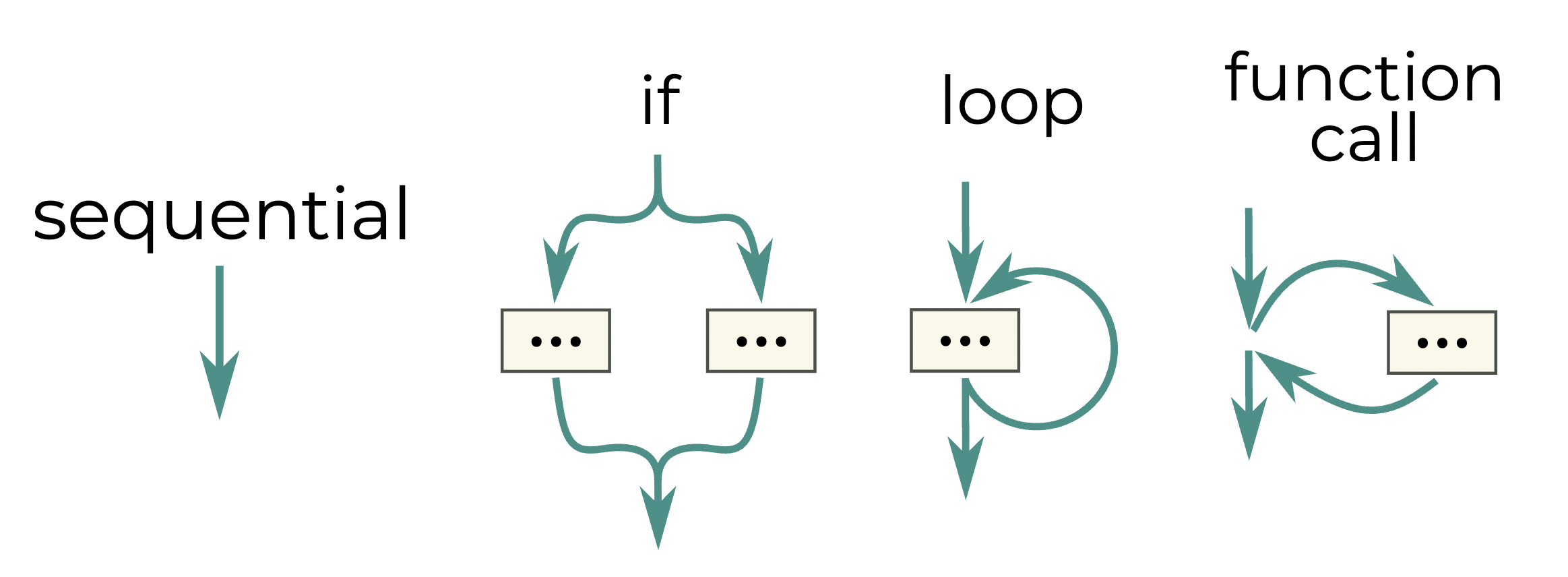

Here are the depictions of the constructs we’re familiar with:

Here’s GOTO:

As Nathan writes:

For everything except goto, flow control comes in the top → [stuff happens] → flow control comes out the bottom. We might call this the “black box rule”: if a control structure has this shape, then in contexts where you don’t care about the details of what happens internally, you can ignore the [stuff happens] part, and treat the whole thing as regular sequential flow. And even better, this is also true of any code that’s composed out of those pieces. When I look at this code:

print("Hello world!")

I don’t have to go read the definition of print and all its transitive dependencies just to figure out how the control flow works. Maybe inside print there’s a loop, and inside the loop there’s an if/else, and inside the if/else there’s another function call… or maybe it’s something else. It doesn’t really matter: I know control will flow into print, the function will do its thing, and then eventually control will come back to the code I’m reading.

Structured concurrency—GO statement considered harmful #

Fast forward about half a century—the year is now 2016, GOTO is dead and buried, and concurrent programming is all the rage. Every major language has introduced some sort of primitive that represents “spawn a separate branch of execution, and execute both branches concurrently—the eponymous go of Go, new Thread(...).start() in Java, and so on.

Some suspiciously familiar problems were arising in that area. Concurrent programs were notoriously difficult to reason about, error handling was error-prone (the industry default for handling errors in something spawned from the main thread was—and still is—often just “drop the error and hope for the best”^{[1], [2], [3], [4]}), and when something did inevitably break, debugging was a nightmare. Stack-traces only showed information about the stack of the thread that failed, but it was impossible to determine where it was spawned from or under what conditions, unless you somehow kept track of that yourself.

But there were also new problems. Race conditions and synchronization became a thing you needed to deal with, and a slew of APIs were built to address this issue, including synchronized methods, various flavors of mutexes, semaphores, and other things. You needed to figure out how, when, and when not to share data between different branches of execution, leading to things like atomic variables, ThreadLocal, and an entirely separate set of concurrency-safe collections. If you screwed up, you would at best get an exception, at worst a deadlock or silent bug, and it would only happen sometimes. God forbid you needed to deal with something non-trivial, like timeouts, interruptions, or cancellations (think Ctrl-C).

Needless to say, all of this is really difficult, and all of these difficulties compound. Concurrent programming is a pain. And as it so happens, this is the control flow diagram for all of the primitives that were mentioned above (Nathan labels them all as go):

Coincidence? I think not!

I’ll defer to Nathan’s article for the blow-by-blow, but suffice to say that, yes, the similarity of the diagrams is no coincidence—thread spawning mechanism are guilty of the same type of sin as GOTO, and consequently cause the same type of problems. They don’t do this by snatching control away from the caller, but rather splitting the execution into separate strands, and only “returning” one to the caller. In that sense, you could argue that this is an even more precarious state of affairs than with GOTO, because instead of a single spaghetti strand, you can now have 2 or more strands squiggling through the codebase.

I should note that when I say “thread”, I mean it in the general sense of “branch/path of execution”—it could be an OS thread, a green thread (e.g., a goroutine or virtual thread), a coroutine, a promise chain, or something else.

The solution? Structured concurrency. I recommend you read up on the concept if you’re not familiar with it, since I won’t be going into sufficient detail for my explanation to qualify as an introduction (Nathan’s article is an excellent place to start). However, I do want to walk through the essentials, because you’ll immediately recognize their counterparts in structured cooperation.

In a nutshell, the basic idea is to mandate that separate threads of execution can only be launched from within a special code block—in Kotlin, it’s the lambda parameter passed to the coroutineScope function; in Nathan’s Trio, it’s inside the with block that delimits the lifetime of the Nursery object; in Java (still in preview at the time of writing), it’s inside the try-with-resources block that delimits the lifetime of the StructuredTaskScope object; in Swift, it’s inside the lambda parameter passed to the withTaskGroup function, and so on.

Crucially, that code block does not exit until everything it spawned has finished running. If the execution of the spawning thread gets to the end of the block before all the threads it spawned have finished, it stays there and waits. This is the fundamental rule that structured concurrency is built around.

Here’s a simple example in Kotlin that drives this home:

print("1")
coroutineScope {
    print("2")
    launch {
        delay(1000L)
        print("4")
    }
    print("3")
}
print("5")

// prints 12345, with a ~1s delay between printing 3 and 4

In most implementations, the code block is typically associated with an object whose lifetime is tied to it, i.e., it is created just before the code block is entered, and ceases to exist right after the code block is exited. In Kotlin, this object is the CoroutineScope, in Trio, it’s the Nursery , in Java, it’s the StructuredTaskScope, in Swift, it’s the TaskGroup. This object conceptually or literally represents a sort of “container” into which any spawned execution threads are placed, along with any child containers, and you can pass it around and spawn tasks “into” it from (lexically) outside the code block it represents (as long as the block hasn’t finished in the meantime). Any such tasks are treated as if they were spawned from within the code block.

If this is the first time you’re encountering structured concurrency, it might not be immediately obvious that this is an improvement over doing it any other way, but as anyone that has actually used it for any amount of time knows, and as the adoption across a wide range of languages and libraries backs up, this approach makes concurrent programming much, much easier to deal with. It by no means solves all the problems inherent to concurrent programming—concurrent programming is still hard, still full of unique challenges, and it’s still easy to shoot yourself in the foot. But by imposing a hierarchy on the threads of execution and mandating that each parent needs to wait for its children, it cuts away entire classes of difficulties and reintroduces features that were previously lost, as you’ll see in the next section.

Why?

Well, this is the control flow diagram of blocks that obey the rule of structured concurrency:

And as you can see, it obeys the black box rule—a single thread of execution goes in, and a single thread of execution comes out.

Coincidence? I think not.

One door closes, many others open #

Reasoning #

By restricting what programmers could do, we recovered many features that were lost when concurrent programming first took off. Chief among those, as you can probably guess, is the ability to think in black boxes. Previously, any function anywhere, at any depth, could just decide to spawn a thread, and the only way to know for sure is to open up every function recursively and check.

In practice, that’s actually not that much of a problem—spawning a separate thread of execution is usually (though not always) a pretty expensive operation, so people don’t tend to spawn them willy-nilly just for the fun of it (and if they do, their code is unlikely to proliferate much). But there is another, more realistic concern: for functions that legitimately do spawn threads, even when they openly advertise it, you still have no guarantees about what happens to those threads when the function exists. Do they keep living in the background? Are they finished, and did the function clean them up? Will that always happen, even when exceptions get thrown? Do I need to kill them or manage them somehow? Is there any situation where they become my responsibility? Is there some orchestrator somewhere else that also interacts with them? And in order to answer those questions, you have no choice but to concern yourself with what that function does and how it’s implemented. You can no longer treat it as a black box.

With structured concurrency, you don’t need to worry about that, ever. If a function returns (either normally or by throwing an exception), everything it spawned has either finished and been cleaned up or was placed into some sort of “scope” (the container objects mentioned above) that needs to be passed in. If that’s the case, you can clearly see that the object is part of the function’s signature, and therefore know that the threads are someone else’s problem (specifically, whoever provided the scope object).

Synchronization #

When you tackle a problem by decomposing it into parts that run in parallel, structured concurrency also makes synchronization much easier—problems of the “don’t do X until Y happens” persuasion. This, in turn, dramatically decreases the number of times you need to use lower-level primitives such as mutexes or synchronized methods. It makes the code more understandable and predictable—it’s infinitelly easier to understand a parallel algorithm written using structured concurrency than without it, and you’re much less likely to make a mistake when writing it. Nathan himself attests to having the same experience with Trio.

Exceptions #

Structured concurrency also allows us to recover the concept of a call stack. Since each parent is guaranteed to wait for each child, a sensible, informative call stack can be obtained by essentially concatenating the call stack of the parent with the call stack of the child. This in turn allows us to a) have meaningful stack-traces, and b) have a well-defined place to propagate exceptions to—the parent.

The latter is especially important since it allows you to manage errors properly. When an exception isn’t handled in a child, it is simply rethrown in the parent. If it’s unhandled there, all other children of the parent are cancelled/interrupted, and the exception is propagated up another level. It’s basically just regular stack unwinding, except the stack is now essentially a tree, with each node being a place where multiple threads were spawned. Unwinding past a branching point means first unwinding all of the other branches and then continuing up the tree.

Cancellations & Timeouts #

This also makes cancellation/interruptions much easier to deal with, as there is always a well defined hierarchy across which the cancellation/interruption can propagate. There is no risk of forgetting to cancel something and leaving it hanging in a vacuum. Timeouts are another thing that became much easier to manage, since, again, you have a well-defined hierarchy across which you can track total execution time, and which you can cancel or interrupt if you need to.

Resources #

Finally, we also recover the ability to do reasonable resource handling. Previously, if you spawned a new thread in the middle of a with-resources block, you would have no guarantee the resource would actually still be available:

// pseudo code
with (someResource) {
    spawn {
        sleep(1 day)
        // Resource is no longer available here, because parent has long since exited
        doStuff(someResource)
    }

}

However, with structured concurrency, this is no longer a concern:

// pseudo code
with (someResource) {
    scope {
        spawn {
            sleep(1 day)
            // Resource is no longer available here, because parent has long since exited
            doStuff(someResource)
        }
        // Won't exit until everything is done
    }
}

Much like with GOTO, moving away from GO-like constructs and introducing structured concurrency allowed us to go from a world of tangled spaghetti, where multiple threads of execution squiggled chaotically all over the codebase with no guarantees whatsoever, to a world where all strands were neatly organized in a well-defined hierarchy. And by doing so, everything suddenly became much easier to manage, while also allowing us to recover many fundamental features that were previously lost.

Are you starting to see the pattern?

Structured cooperation—distributed GO considered harmful #

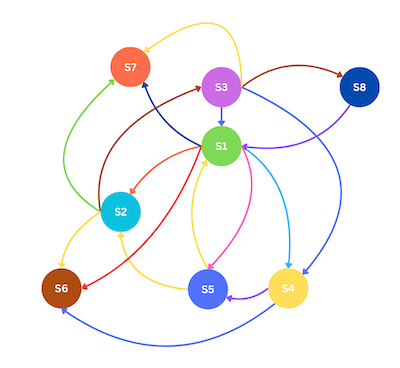

Our travels finally bring us to distributed systems, where, armed with our newfound understanding of programming language design, we see exactly the same problems that we discussed in the previous paragraphs.

And no wonder! GOTO allowed a single strand to squiggle across a single codebase. GO allowed a known number of strands to squiggle across a single codebase. But when emitting a message in a distributed system, you have no idea if, and how many, listeners it might be triggering. Each such listener corresponds to a new splitting of the thread of execution, and on top of that, it’s executing in a completely different codebase as well. Distributed message-based systems allow a possibly unknown number of strands squiggle across an unknown number of codebases!

It’s funny how each time this problem appears, we’ve managed to amplify it and make it worse. We’ve effectively taken the problems of GOTO, combined them with the problems of GO, and spread it across multiple applications. The result is a spaghetti octopus of messy execution flow that can only be reasonably called spaghettopus code.

By now, it should be completely obvious where I’m going with this—it’s clear that we need to fix things so that the black box rule is obeyed. To do that, we can just do pretty much exactly what we did in the case of concurrency, and recover exactly the same features and properties as we did with structured concurrency. Indeed, if you go through the previous section, you’ll find that every single thing discussed has a practically identical counterpart in structured cooperation.

As it turns out, the title of the first article contained all the information you actually needed to read—structured cooperation, and all of its benefits, is literally what you get when you apply the principles of structured concurrency to distributed systems.

Conclusion #

In this series of articles, I’ve tried to convince you that the adoption of structured cooperation helps combat the inherent complexities that are often associated with distributed systems.

Just as the programming world learned to deprecate the unrestricted GOTO statement in favor of structured programming decades ago and more recently embraced structured concurrency to solve similar problems in concurrent operations, the observations above have led me to believe that we now face a similar evolutionary step in distributed environments. We’ve seen that the core problem lies in the uncontrolled flow of execution, where operations within a distributed system can jump unpredictably, making it difficult to reason about system behavior or impose any kind of hierarchy on the flow of execution. This absence of a clear, hierarchical execution flow—not following the “black box rule”—is what structured cooperation is designed to remedy.

By applying a single, simple rule—–that a message handler does not proceed until all handlers of all emitted messages have completed—–structured cooperation brings a lot to the table. It completely eliminates certain problems, such as race conditions due to eventual consistency. For us humans, it makes it easier to reason about, manage, and debug distributed systems. And it reintroduces powerful features often lost in distributed contexts, such as true distributed exceptions, complete with stack traces that span multiple services, and what amounts to stack unwinding, again across multiple services. However, it doesn’t force you into anything—you’re always free to only apply structured cooperation to those things that need to be synchronized, while not using it (or launching an independent hierarchy) for those things that don’t. This also allows you to introduce sturctured cooperation gradually.

Scoop serves as a practical proof-of-concept, demonstrating how the principles of structured cooperation can be implemented. Though not a production-ready library, Scoop showcases how one can implement many features needed from a non-blocking orchestration framework on top of a few well-chosen primitives—EventLoopStrategy and CooperationContext—while leveraging structured cooperation to facilitate step coordination and rollbacks.

Ultimately, structured cooperation is the latest iteration of an enduring idea that has consistently shaped software development for over half a century, and I do believe that by embracing the lessons history has taught us and applying the same idea once again, we can make all our lives much easier.
